Ladle Overhead Crane is designed with European design and unbeatable advantages for sale now. Sturdy quality. Good price. One year of quality assurance. Full set of after-sales services.

TypeQDY
Lifting Capacity5~550 ton
Lifting HeightCustom Height
Span 10.5 to 31.5m
Lifting speed6-13m/min
Trolley running speed36-45.9m/min
Crane running speed63-118.6m/min
Working DutyA7

Introduction

Ladle Double Girder Overhead Crane is large crane equipment specially customized by WeiHuaCrane for handling molten metal in metallurgy and foundry shops. It is improved by using a double girder overhead crane (QD).

What can we offer you?

The lifting weight is 5t-550t, the span is 10.5m-31.5m, the lifting height is 1m-30m, and the working load is medium (A5, A6).

Lifting weight: 5 ton; 10 ton; 16 ton; 20 ton; 32 ton; 50 ton; 750 ton; 100 ton; 125 ton; 150 ton; 160 ton; 200 ton; 250 ton; 300 ton; 350 ton; 400 ton; 450 ton; 500 ton; 550 ton;

Example: 16/3.2ton: Double hook

Span: 10.5m; 13.5m; 16.5m; 19.5m; 22.5m; 25.5m; 28.5m; 31.5m;

In addition, provide non-standard products according to your requirements.

The main purpose of Ladle Overhead Crane?

The foundry crane, also known as a ladle crane, is an important piece of lifting and transporting equipment used in steel-making and the continuous casting processes. It is specially designed to lift and transport liquid steel ladles and it is applied to environments with high temperatures, dust, and heavy-duty work.

Features

  1. Used for steel mill to complete particular process.
  2. Safe and reliable, easy maintenance
  3. Good in usability, long operating life.
  4. High loading capacity and working class.

WeiHuaCrane Advantages

  • More professional service: If you are not sure how to customize, our sales manager will help you choose the most suitable product for you;
  • Best for you: professional engineers customize products according to your user environment;
  • Better price: According to your user environment, etc., we will give you the most suitable product, save unnecessary functions, and help you save money;
  • Customized lifting height: According to your needs, the lifting height can be customized for you, which can be extended, reduced, etc., which is most suitable for you;
  • Customized function: wireless remote control can be installed, which is more convenient to use;
  • Modify the power supply: you can modify the power supply (voltage, frequency, etc.) according to your environment;
  • On-site installation: Worried about installation errors, we can on-site installation and commissioning;
  • Guidance: We provide use videos and detailed maintenance manuals;
  • Replacement of vulnerable parts: more vulnerable parts are provided so that your crane can be replaced in the first time when it is worn out;
  • Parts are processed separately: after long-term use, if some parts are damaged, we will process these parts for you and send them to you;

Application Scenarios

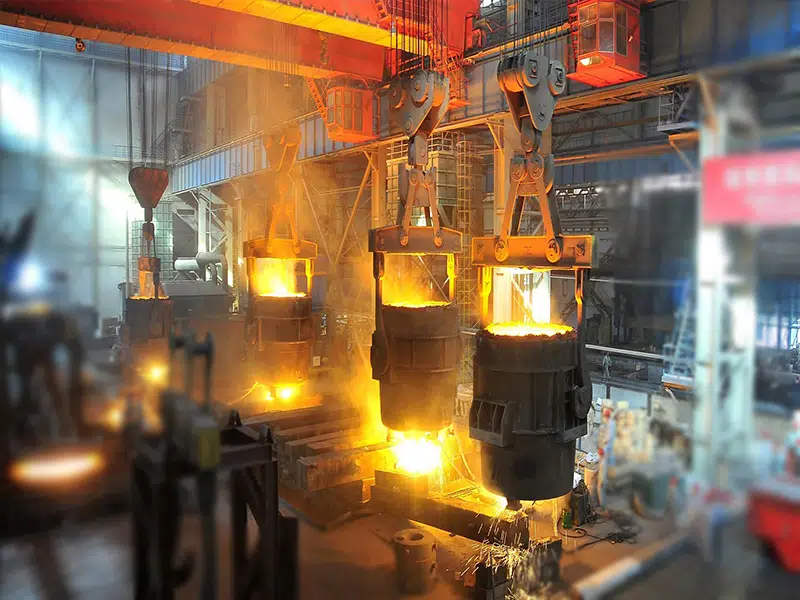

Foundry crane, also known as ladle crane, is an important piece of lifting and transporting equipment used in steel-making and the continuous casting processes. It is specially designed to lift and transport liquid steel ladle and it is applied to environments with high temperatures, dust, and heavy-duty work.

Main Structure

Mainly composed of bridge frame, trolley, traveling mechanism, and electrical equipment.

Note: The main hook is used for lifting the steel ladle, the aux. the hook is used for lifting other goods; It is not allowed for Main and AUX. hooks to lift two different goods at the same time. When separate working, it is not allowed to exceed the rated lifting capacity of the main and aux. Hook. Working at the same time, it is not allowed to exceed the rated lifting capacity of the main hook.

Bridge Frame

Double girders, welding box beam, camber meets the national standard.

Steel quality is Q235B or Q345B(international Fe37 or Fe52).

The main girder adopts a box beam structure.

The main girder section is designed by a computer, to make sure the main girder is with strength and stiffness, lightweight.

The electrical equipment is inside the main girder.

The end track is divided into a rigid beam and a hinged beam.

The rigid beam is contacted by a bolt, the hinged beam is contacted by a pin shaft.

Rigid beams have “Ingot” type and level straight type.

Parts

Walking board, platform, railing,  ladder, etc. are designed and manufactured according to national safety standards.

There is a safe board with a height not less than 90mm,  around the walking board and platform, the height of the railing is not less than 1050mm.

In order to avoid molten steel radiation to reduce the service life of the main girder, there is a thermal protective plate below the main girder.(it is made of rock wool and steel plate)。

The conductor of the trolley is I-beam, safe and reliable, easy maintenance.

With crane conductive line cage and block frame.

Trolley

It is composed of a motor, reducer, brake, coupling, wheel, and wire drum.

Equipped with a special motor for metallurgy, the insulation class is H.

Matched with two sets of brakes(double braking)

Trolley has a double-drive mechanism, reducer’s gear is driven on a hard-toothed surface.

Adapt 6W(19)high strength, line contact metal core wire rope, security coefficient≥6.

Crane traveling mechanism

It consists of a drive device and a wheel device.

The drive device consists of a motor, brake, reducer, etc.

The wheel device consists of an initiative wheel device, slave wheel device.

Drive devices are equipped on a pedestal, which is in the main girder’s four corners, the initiative wheel makes the crane travel, it is called “four corner’s drive”.

Electrical parts

The electrical room of the main girder adopts rock wool to prevent heat and keep warm, with an air cooler.

Electrical devices are sealed for dustproof, heat insulation, and cooling

The power supply of the trolley moving adapts the thermostability cable.

Protection

Crane is equipped with an overhead limiter or electric scale for protecting and weighing.

With anti-collision devices and audible, visual alarm devices.

The over-speed switch is fixed on the main lifting motor shaft.

The lifting mechanism has both positive contactor and reverses contactor failure protection functions.

Both crane and trolley use spring buffer.

Other safe protection functions

Under-voltage protection、ground fault protection,short-circuit protection、over-heating protection、overload protection、position limit protection、over-current protection、power-off protection etc.

Control ways

Closed warming cabin control, remote control.

Windows in the cabin use double-layer tempered glass.

Inside the cabin equipped with an air conditioner or industrial cooler.

The installation of the cabin can be divided into two ways of left or right.

The open direction of the cabin door has side open, end open and top open, below are side open and end open.

Ladle Overhead Crane Parameters Table

CapacitySpanLifting heightLifting speedTrolley speedCrane speedWork dutyTrack type
S(m)mm/minm/minm/min
5 ton10.5~31.56~1612.539.5118.6A6~A8P38
10 ton10.5~31.56~161344.9114.9A6~A8P38  P43
16 ton10.5~31.56~1610.844.6103.5A6~A8P38  P43
20 ton10.5~31.56~169.945.9103.5A6~A8P38  P43
32 ton10.5~31.56~169.743.588A6~A8QU70
50 ton10.5~31.56~167.639.377.5A6~A8QU80
74 ton13~316~206.437.277A6~A8QU100
100 ton13~316~207.53877A6~A8QU120
125 ton13~316~207.53879.7A6~A8QU120
140 ton13~316~226.843873A6~A8QU120
160 ton13~316~2263777.8A6~A8QU120
180 ton13~316~247.23886A6~A8QU120
200 ton13~316~2484086A6~A8QU120
225 ton13~316~2484087A6~A8QU120
240 ton13~316~24103887A6~A8QU120
280 ton13~316~24103676A6~A8QU120
320 ton13~316~2493663A6~A8QU120
