Wall Travelling Cranes can increase your plant productivity by quickly moving small loads in a long lateral movement without taking up floor space.

Wall console cranes can slide horizontally along rails on the wall. They can be operated under overhead cranes, enabling multiple logistical processes in the production area.
Wall console cranes can also handle heavier loads than standard workstation lift systems. It can be used as auxiliary equipment for large overhead cranes and gantry cranes, or alone in very limited spaces.

TypeBB
Lifting Capacity0.5 to 10 tons
Lifting Height3 m to 10 m
Arm Length3 m to 10 m
Travelling TypesAlong the track
Control OptionsPush Button Pendants
Radio Controls
Hoist Powerelectric, manual
Working DutyA3, A4
Ambient Temperature-20~40℃

Introduction

Wall Travelling Cranes is a cost-effective material handling equipment that travels along the track on the elevated track of a multi-story assembly shop mounted on a wall or other supporting structure, making full use of the working space.

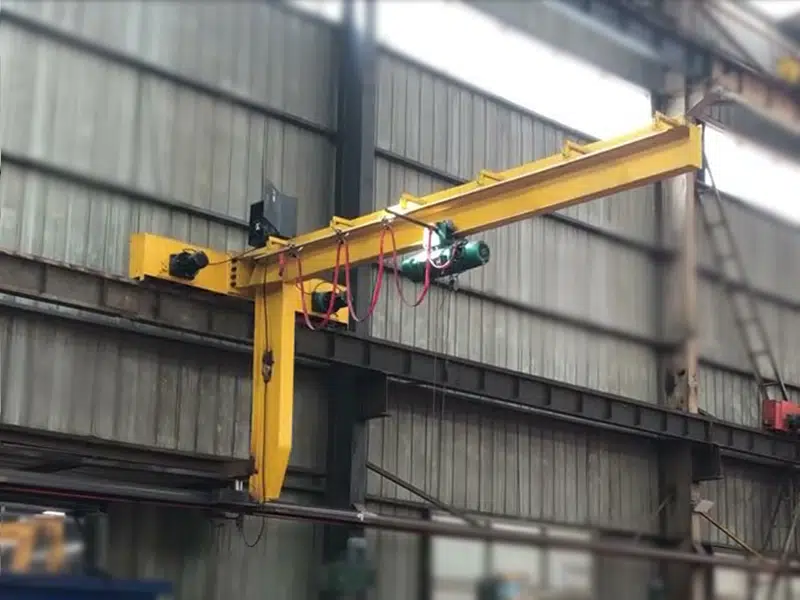

Wall-mounted cranes can provide rectangular lateral movement of materials, and at the same time can lift objects in the vertical direction by hoists equipment.

What can we offer you?

We can provide you with common Wall Travelling Cranes with a lifting weight of 0.5 tons to 16 tons, an Arms Length of 3 m to 10 m, an Arms Length of 3 m to 12.5 m, Usually 180° and 360°, and a light working class (A3, A4).

Wall travelling Crane, as a supplement to the overhead crane system, effectively carries out material handling work.
Wall travelling Crane provides a good solution for moving materials at workstations.

Features of Wall-travelling Jib Crane

Wall travelling cranes offer long lateral transporting of materials without taking up floor space or interfering performance of large overhead cranes;

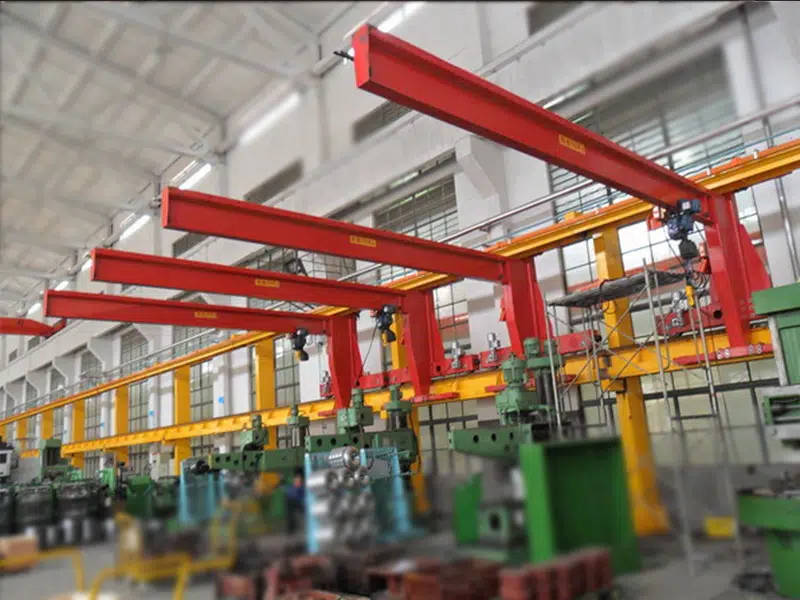

Wall travelling jib cranes can be lined up to handle materials in work stations and the length of crane runways is without limitation;

The most-effective material handling equipment for handling smaller lifts.

Handle or remote control operation on the ground is provided which is easy, accurate, quick, and efficient;

A customized material handling solution is available which can fully meet your requirements and application conditions;

The double block button is installed and the protection class is up to IP5;

The services life of a wall travelling cranes can high up to 500 thousand times.

Advantages of Wall-travelling Jib Crane

Light structure, few-demand to architecture, confirming to state standards;

Compact structure with the novel, reasonable and simple design

Lightweight, moving flexibly;

Convenient in operation, and turn to flexible;

Cost-effective price and low maintenance.

WeiHuaCrane Advantages

  • More professional service: If you are not sure how to customize, our sales manager will help you choose the most suitable product for you;
  • Best for you: professional engineers customize products according to your user environment;
  • Better price: According to your user environment, etc., we will give you the most suitable product, save unnecessary functions, and help you save money;
  • Customized lifting height: According to your needs, the lifting height can be customized for you, which can be extended, reduced, etc., which is most suitable for you;
  • Customized function: wireless remote control can be installed, which is more convenient to use;
  • Modify the power supply: you can modify the power supply (voltage, frequency, etc.) according to your environment;
  • On-site installation: Worried about installation errors, we can on-site installation and commissioning;
  • Guidance: We provide use videos and detailed maintenance manuals;
  • Replacement of vulnerable parts: more vulnerable parts are provided so that your crane can be replaced in the first time when it is worn out;
  • Parts are processed separately: after long-term use, if some parts are damaged, we will process these parts for you and send them to you;

Application Scenarios

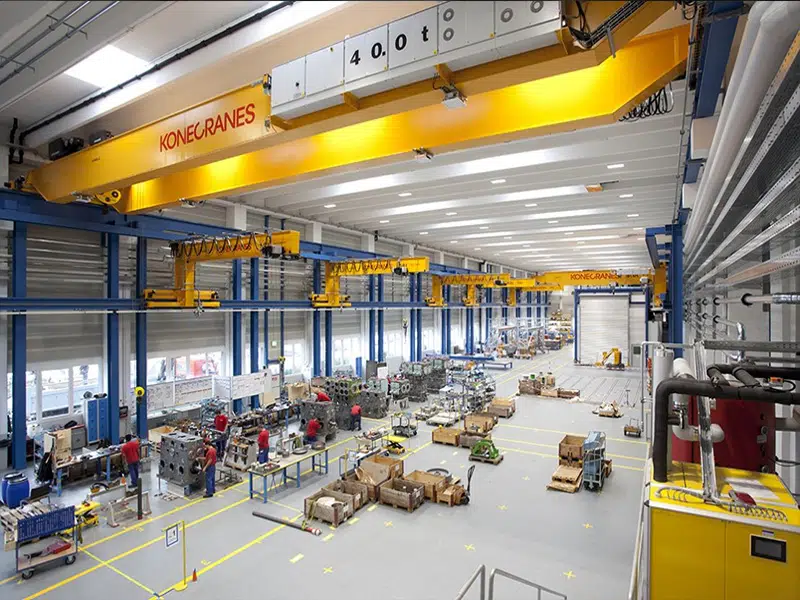

wall travelling cranes have a track to themselves underneath the big overhead travelling cranes. This enables you to transport loads within individual production areas independently from the cranes on the higher level.

Wall travelling crane is an optimal solution for material handling, used in workshops of machine manufacturing and assembling, etc.

A wall travelling crane offers a good solution for handling materials at the workstation.

Technical Parameter of Wall-travelling Jib Crane

CapacityValid radiusLifting heightLifting speedTrolley speedCrane speedTrack type
R(m)mm/minm/minm/min
0.5 tons5~12.56~308(0.8/8)10(20)20(30)P18
1 ton5~12.56~308(0.8/8)10(20)20(30)P18

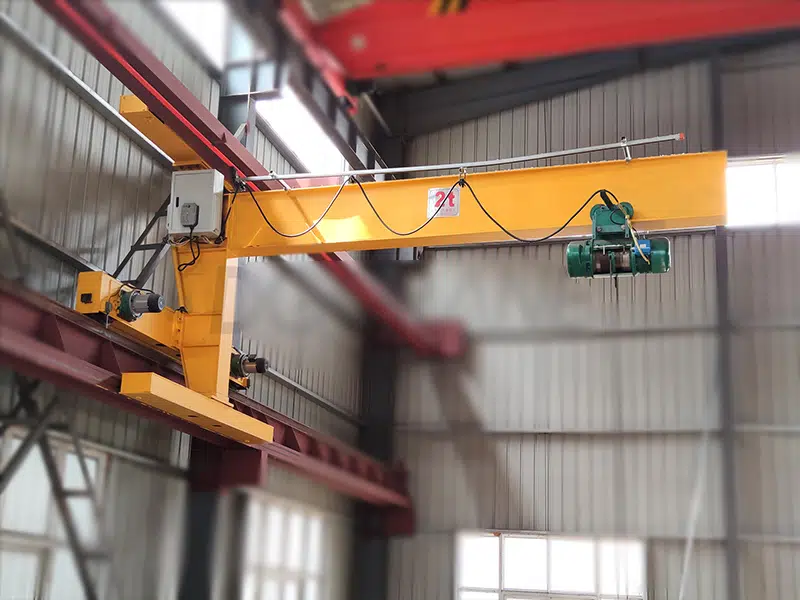

2 tons5~12.56~308(0.8/8)10(20)20(30)P18  P24
3 tons5~12.56~308(0.8/8)10(20)20(30)P24
5 tons5~12.56~308(0.8/8)10(20)20(30)P24
10 tons5~12.59~307(0.7/7)10(20)20(30)P24 P30
16 tons5~99~303.5(0.35/3.5)1820(30)P30 P38

Drop Us Message

In order to customize the design drawings and the latest price for you as soon as possible, please fill in as much useful information as possible in the Message.

After receiving your message, our engineers will first customize the Wall travelling Cranes (BB) and make design drawings for you according to your needs, and then the sales manager will provide you with the price and contact you. Please wait.

Of course, you can also send this information to our email: [email protected].

In order to provide you with prices and drawings quickly, please fill in the message as far as possible: ⭐Lifting capacity; ⭐Lifting height; ⭐Arm length(m);⭐Power supply: __v/__phase/__Hz, etc.; If you have any other information, such as 1️⃣. What materials will the crane lift? 2️⃣. Traveling length: m? Do you need us to provide the rail for you? 3️⃣. crane working condition or environment? 4️⃣. how long meters does your crane travel? 5️⃣. how many hours does it work per day?
