Top Hook Type Electric Chain Hoists can be differentiated based on the type of suspension used to position the crane above the load. Chain hoists with hook mounting have a top hook on the crane frame or body, enabling them to be temporarily attached to the trolley, beam, or structural frame of the building.
Additionally, the top hook usually has a safety latch to prevent the load from shaking or accidentally sliding. Today, chain hoists are used in a wide range of applications. With their smaller size, lower sound, and lighter weight, they have become an efficient material handling tool for lifting, lowering, or transporting materials and products.

TypeHook Type
Lifting Capacity0.5 to 35 tons
Lifting Height3 to 50 m
Lifting speed0.8 to 6.7 m/min
Working DutyM3, M4
Function Wayelectric
Ambient Temperature-20~40℃

Introduction

hook-type electric chain hoist has a capacity of 0.5 to 35 tons, and the lifting height is customized according to your needs. It can be used for moving or loading and unloading goods, and can also be used for the installation, debugging, and maintenance of precision molds. The electric chain hoist with hook is used for fixed suspension and vertical transportation of materials.

What can we offer you?

Lifting capacity:500 kg to 35 tons (0.5 kg,1 ton, 2 ton, 3 ton, 5 ton, 7.5 tons, 10 ton, 15 tons, 20 ton, 25 ton, 30 ton, 35 ton).

Lifting height is customized according to your usage requirements.

The main purpose of Hook Type electric Chain Hoists?

Usd for lifting or loading.

Or lifting heavy objects for work or keep in repair.

It can be controlled by a handle on the ground or a wire(no-wire) remote control.

Features

  • Electric chain hoist shell: The cooling fin is specially designed to ensure quick heat dissipation with a rate of up to 40% and continuous service. The shell of the electric chain hoist is made of die-cast aluminum alloy, light but hard.
  • Electric chain hoists motor: WeiHuaCrane electric chain hoist adopts the Side Magnetic Series YEP Braking Motor.
  • Chain hoist gear: The hoist gear of the electric chain hoist is made of alloy steel by carburizing quenching treatment. Thus transmission with low noise and high efficiency is guaranteed.
  • Inverse phase sequence protecting device: Inverse phase sequence protecting device is used to cut the circuit of the electric chain hoist in case of wiring error in the power supply.
  • Side magnetic braking device: The magnetic force generator is the latest design that is featured for generating magnetic force. It makes the electric chain hoist instantly braked as soon as the electric power is cut off. Thus the braking safety while loading is guaranteed.
  • Electromagnetic contactor: Electromagnetic contactor can be used safely under high frequency.
  • Control switch: Waterproof push button is applied to the electric chain hoist. It is light and durable.
  • Limit switch: The limit switch device is installed where the weight is lifted on and off to make the motor stop automatically so as to prohibit the chains from exceeding for safety.
  • Chain bag: The chain bag of the WeiHuaCrane electric chain hoist is light, attractive, and durable.
  • Lifting Chain: The lifting chain of WeiHuaCrane electric chain hoist usually adopts FEC G80 ultra heat-treated alloy steel chain, which also can be safe in poor environments such as rain, seawater, and chemicals.
  • Hoist Hook: The lifting hook of the WeiHuaCrane electric chain hoist is forged with perfect strength which is hard to break.
  • The operation safety of the lower hook is ensured by its 360 degrees rotation and safety.
  • Support frame: The loading support frame consists of two steel plates, which is extremely sturdy.
  • Transformer: 24 V/36 V/48 V transformer device. This device is used to prohibit unexpected accidents caused by electric leakage and guarantees safe use while raining.

WeiHuaCrane Advantages

  • More professional service: If you are not sure how to customize, our sales manager will help you choose the most suitable product for you;
  • Best for you: professional engineers customize products according to your user environment;
  • Better price: According to your user environment, etc., we will give you the most suitable product, save unnecessary functions, and help you save money;
  • Customized lifting height: According to your needs, the lifting height can be customized for you, which can be extended, reduced, etc., which is most suitable for you;
  • Customized function: wireless remote control can be installed, which is more convenient to use;
  • Modify the power supply: you can modify the power supply (voltage, frequency, etc.) according to your environment;
  • On-site installation: Worried about installation errors, we can on-site installation and commissioning;
  • Guidance: We provide use videos and detailed maintenance manuals;
  • Replacement of vulnerable parts: more vulnerable parts are provided so that your crane can be replaced in the first time when it is worn out;
  • Parts are processed separately: after long-term use, if some parts are damaged, we will process these parts for you and send them to you;

Application Scenarios

Use chain hoist blocks to improve operational efficiency by handling manual lifting and positioning tasks that require a lot of effort. They insist on workplace ergonomics.

Electric chain hoists run faster than other types of hoists. They are cost-effective and take up less space than conveyor systems.

Electric chain blocks are a great solution when you want an easier way to move heavy objects from one location to another. You can complete the lifting work at the touch of a button.

The electric chain block is located above the load to be lifted. They require a power source, so they are usually found indoors and in some places where the crane can be plugged into a power source.

They are commonly used in warehouses, machine shops, and manufacturing facilities. Most electric hoists are designed to withstand hazardous and high-temperature environments. In all environments, safety protocols for operating an electric hoist must come first.

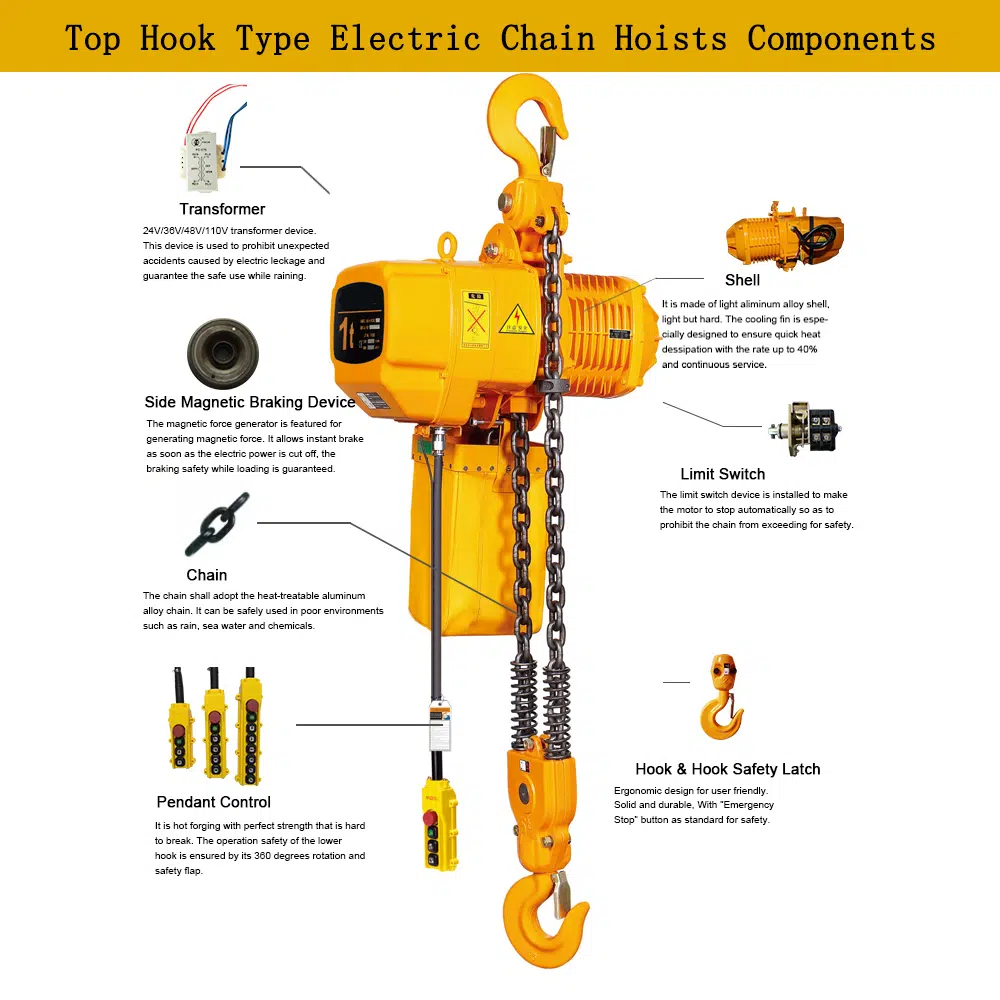

Top Hook Type Electric Chain Hoists Components

Top Hook Type Electric Chain Hoists Components
  • Housing: made of aluminum alloy which is light but hard and can be used in the special work environment with a high heat dissipation rate
  • Inverse phase sequence protecting device: the device is used to cut the circuit of the hook-mounted hoist in case of wiring error in the power supply.
  • Limit Switch: the limit switch device is installed where the weight is lifted on and off making the motor stop automatically so as to prohibit the chains from exceeding for safety.
  • transformer:24 V/36 V/48 V transformer device, this device is used to prohibit unexpected accidents caused by electric leakage and ensure the safety in the special environment
  • Side magnetic braking device: This device generates magnetic force. It allows instant brake as soon as the electric power is cut off, the braking safety while loading is guaranteed, Electric brake is designed for easy access and simple adjustment. It allows instant brake as soon as the electric power is cut off. Thus the braking safety while loading is guaranteed.
  • Chain bag: fixed block is equipped with a chain bag, the chain can be automatically stored in the chain bag during operation, in case the chain is stuck and stained with dirt when free falling.
  • Motor: the motor with high performance has a lightweight and small volume. Its rotating speed can reach 3000r.m.p. High starting torque and sustained rate of electric contaction reach up to 60%, which can meet the demand for high-frequency handling.

Lifting motor

Uses a high-performance lifting motor that can last to work 30 minutes with full loading, and has Grade B insulation.

Lifting chain

The chain of the low-carbon steel alloy makes the chain more tough, strong, and wear-resisting, ensuring safety during work.

A lifting chain hardened surface can prevent the damage of the core materials and products to soften, thus making the lifting chain keep for a long time high performance.

The chain can also according to the request of the customer order extended, allowing you to use more conveniently and save worries.

The chain is equipped with a chain bag, making the electric hoist looks clean and tidy, and beautiful. the chain bag contains antirust oil so that chain is not easy to rust, so as to extend the service life of the electric hoist

Double brake system

Two sets of brake systems, not only reduce the brake failure possibility but also increase its safety and benefit for heat radiation.

1. Electromagnetic brake

This new style brake has features of fast and forward direction. Using the asbestos brake lining greatly extended the maintenance cycle. The brake system has been tested by above 22500 times.

2. Mechanical brake

Very reliable mechanical braking and electromagnetic brake are mutual coordination, can stop turning machine at any time.

Variable speed tooth

The standard chain electric hoist mainly uses reliable helical gear, it can prolong service lift by reducing the meshing impact and vibration.

The special design of gear enhances the durability of gear, And gear is made of alloy steel, through professional fine heat treatment obtain the biggest strength.

  1. The standard chain electric hoist mainly uses reliable helical gear, it can prolong service lift by reducing the meshing impact and vibration.
  2. The special design of gear enhances the durability of gear, And gear is made of alloy steel, through professional fine heat treatment obtain the biggest strength.

Control handle with low voltage

The standard low-voltage on-chain hoist handle is 24v-36v. Low voltage can effectively protect the operator to prevent shock damage. (24V-36V is a compulsive national standard).

Datasheet

CapacityNumber of chainsSpeed selectionLifting SpeedPhaseVoltageFrequency
   (m/min)(Voltage)(Hz)
0.5 tons1Single-Speed6.83-phase220-44050/60
0.5 tons1Double Speed6.9 and 2.33-phase220-44050/60
1 ton1Single-Speed6.63-phase220-44050/60
1 ton1Double Speed6.9 and 2.33-phase220-44050/60

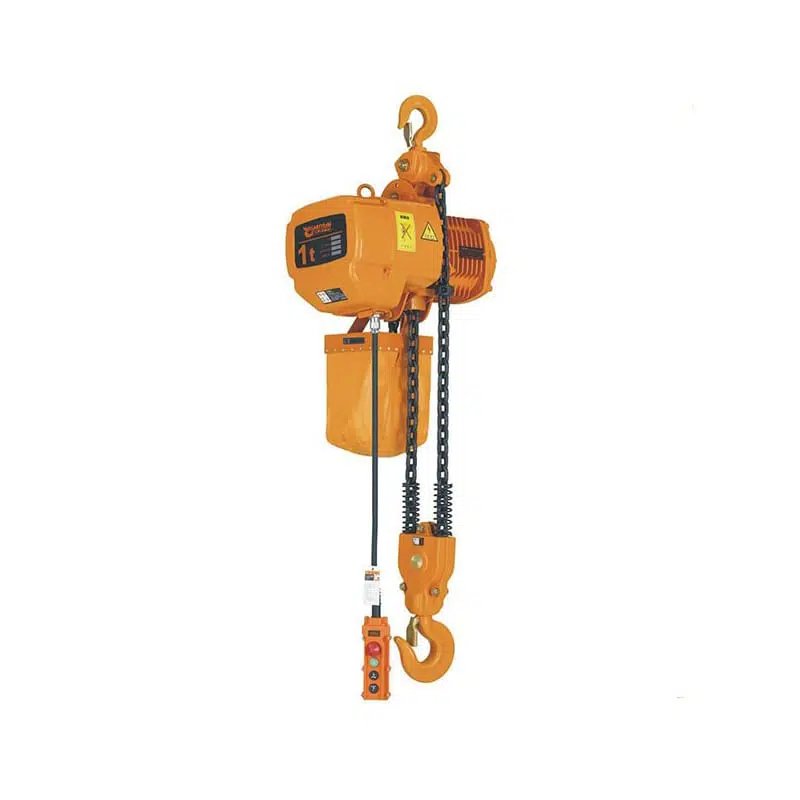

1 ton2Single-Speed3.43-phase220-44050/60
1 ton2Double Speed3.5 and 1.23-phase220-44050/60
2 tons1Single-Speed6.63-phase220-44050/60
2 tons1Double Speed6.8 and 2.33-phase220-44050/60
2 tons2Single-Speed3.33-phase220-44050/60
2 tons2Double Speed3.3 and 1.13-phase220-44050/60
3 tons1Single-Speed5.43-phase220-44050/60
3 tons1Double Speed5.4 & 1.83-phase220-44050/60
3 tons2Single-Speed4.43-phase220-44050/60
3 tons2Double Speed4.5 and 1.53-phase220-44050/60
3 tons3Single-Speed2.23-phase220-44050/60
3 tons3Double Speed2.4 and 0.83-phase220-44050/60
5 tons2Single-Speed2.73-phase220-44050/60
5 tons2Double Speed2.7 and 0.93-phase220-44050/60

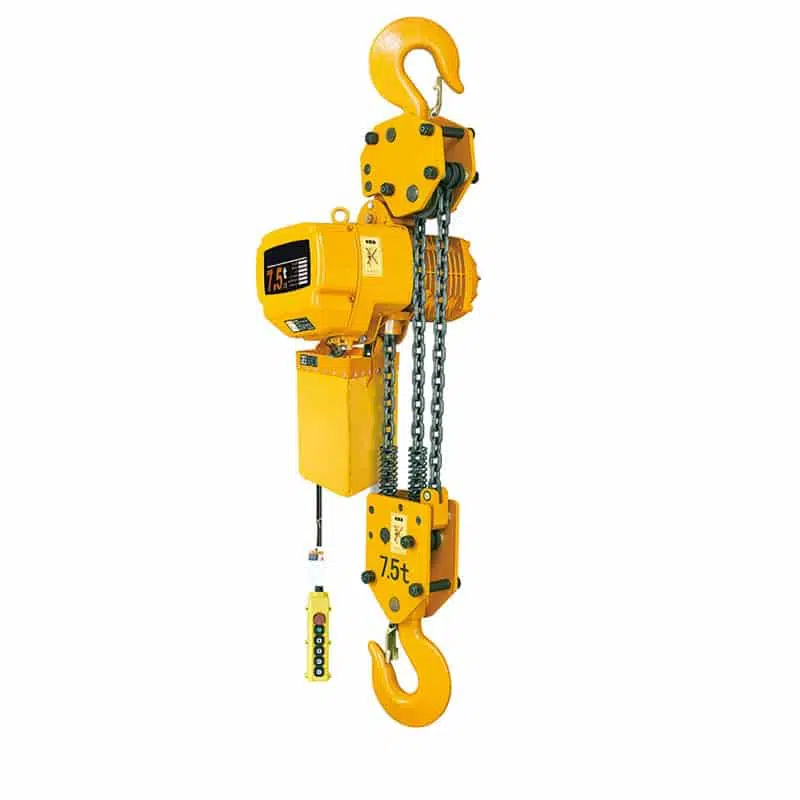

7.5 tons3Single-Speed1.83-phase220-44050/60
7.5 tons3Double Speed1.8 and 0.63-phase220-44050/60
10 tons4Single-Speed2.73-phase220-44050/60
10 tons4Double Speed2.7 and 0.93-phase220-44050/60
15 tons6Single-Speed1.83-phase220-44050/60
15 tons6Double Speed1.8 and 0.63-phase220-44050/60

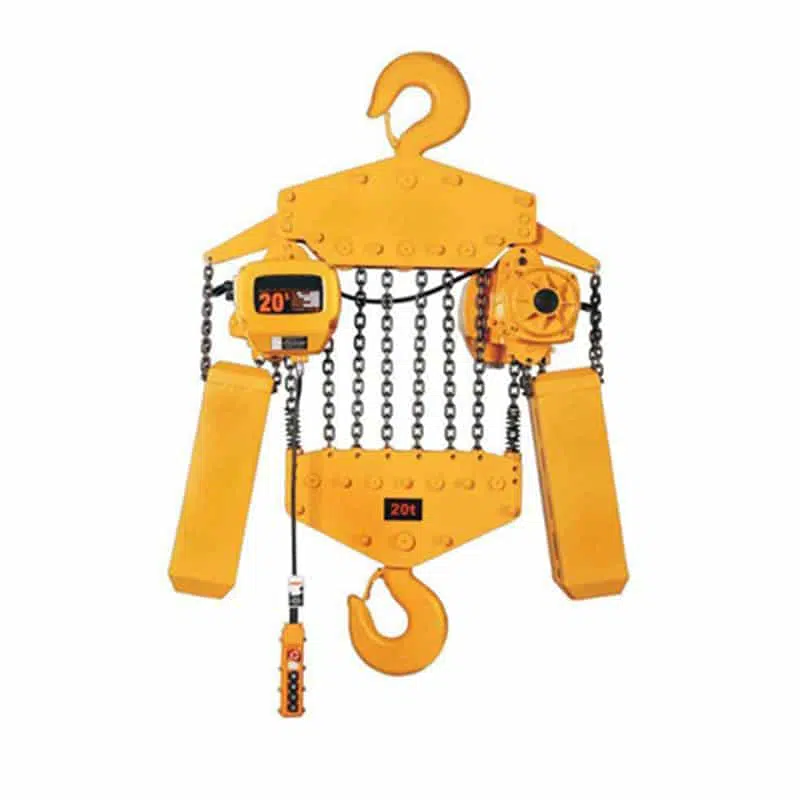

20 tons8Single-Speed1.43-phase220-44050/60
20 tons8Double Speed1.5 and 0.63-phase220-44050/60
25 tons10Single-Speed1.13-phase220-44050/60
25 tons10Double Speed1.2 & 0.43-phase220-44050/60
30 tons12Single-Speed0.93-phase220-44050/60
30 tons12Double Speed1.0 and 0.33-phase220-44050/60

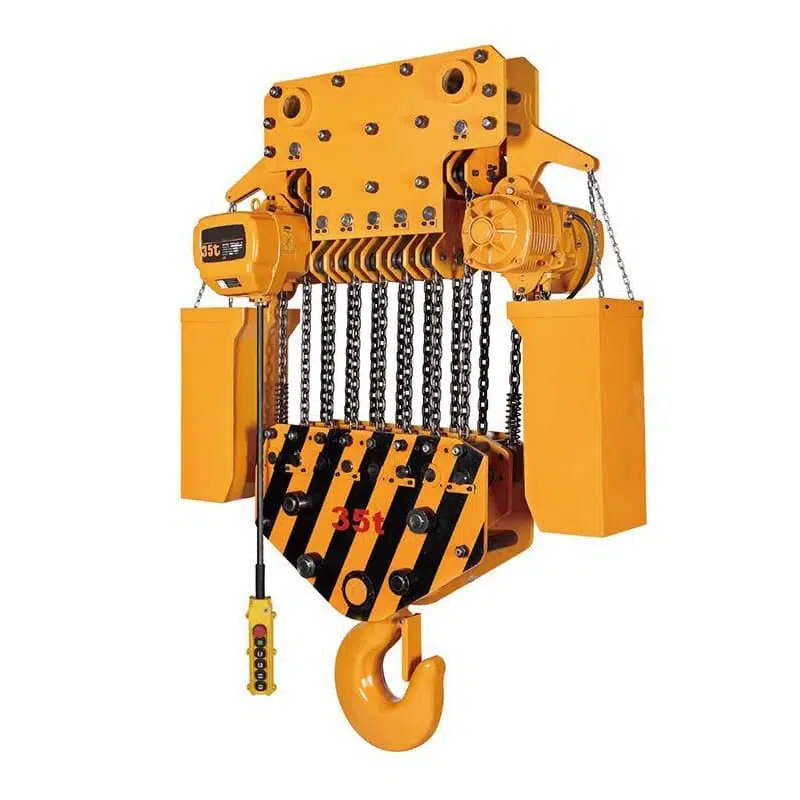

35 tons16Single-Speed0.73-phase220-44050/60
35 tons16Double Speed0.7 and 0.253-phase220-44050/60
