Manual Trolleys Electric Chain Hoists is a common material handling equipment consisting mainly of electric motors, transformers, enclosures, chains, and pendant controls.
They are easy to operate and efficient. Manual Trolleys Electric Chain Hoists are smaller, lighter, quieter, and more precise than other lifting equipment.
| Type | HHBB |
| Lifting Capacity | 0.5 to 35 tons |
| Lifting Height | 3 to 50 meter |
| Working Duty | M3, M4 |
| Lifting method | electric |
| mobile way | Manual Trolleys |
| Ambient Temperature | -20~40℃ |
Introduction
Manual Trolleys Electric chain hoist is a light and small lifting equipment. Consisted of a motor, transmission mechanism, and chain wheel. Beautiful is out looking, Solid Durable. Inside gears are hot-quenched then increases the wear resistance of the gear and toughness. Adopt international advanced technology, fine workmanship, and gear wheel tight fit.
- Compact structure, small size, light bodyweight
- Reliable, easy operation, wide using scope.
Manual Trolleys Electric Chain Hoists are typically used for heavy lifting work. Electricity provides all the power for itself to lift the load high enough so that the hoist can more easily move or transfer the load to another location. It greatly helps increase your productivity and efficiency at work. The trolley helps to move your load a great distance when the crane starts running. There are many sizes and types of trolleys. According to the different trolleys, manual trolleys are mainly divided into gear trolleys and hand push trolleys.
Electric chain hoist with gear trolley
Electric chain hoists with gear trolleys are operated by electric motors. Its trolley is equipped with universal gears for precise placement along the beam. The crane travels along the trolley and includes quick discontact plugs on the pendant and power cord. It is suitable for large-capacity handling in steel warehouses, machinery workshops, manufacturing plants, factories, factories, etc.
Electric chain hoist with trolley
An electric chain hoist with a trolley helps provide extra maneuverability when moving heavy loads. The trolley features all-drum wheels and sealed ball bearings and runs on flat and tapered beams. Yuantai hoists are suitable for large-capacity handling in steel warehouses, machinery workshops, storage areas, factories, and factories.
Electric chain hoist with gear trolley
Electric chain hoists with gear trolleys are operated by electric motors. Its trolley is equipped with universal gears for precise placement along the beam. The crane travels along the trolley and includes quick discontact plugs on the pendant and power cord. It is suitable for large-capacity handling in steel warehouses, machinery workshops, manufacturing plants, factories, factories, etc.
Electric chain hoist with trolley
An electric chain hoist with a trolley helps provide extra maneuverability when moving heavy loads. The trolley features all-drum wheels and sealed ball bearings and runs on flat and tapered beams. Yuantai hoists are suitable for large-capacity handling in steel warehouses, machinery workshops, storage areas, factories, and factories.
What can we offer you?
Lifting capacity:500 kg to 35 tons (0.5 kg,1 ton, 2 ton, 3 ton, 5 ton, 7.5 tons, 10 ton, 15 tons, 20 ton, 25 ton, 30 ton, 35 ton).
Lifting height is customized according to your usage requirements.
The main purpose of Manual Trolleys Electric Chain Hoists?
Usd for lifting or loading. Or lifting heavy objects for work or keep in repair.
It can be controlled by a handle on the ground or a wire(no-wire) remote control.
It can be suspended and fixed for use or matched with a monorail electric trolley
Features
- Compact structure, small size, light body weight
- Reliable, easy operation, wide using scope.
Structure Features
- The body chooses to use high strength tensile shell or die casting aluminum case, extrusion molding process thin-walled precision manufacturing, small size, low weight, high strength.
- Seperate speed-adjusting system, seal the level 2 coaxial transmission speed gear mechanism with long-service oil bath lubrication system.
- The electric hoist powder metallurgy clutch is used for overload protection device. The brake disc adopts dc magnetic field, braking torque, stable and rapid, the noise is small.
Application Scenarios
- Widely used in factory, storage, wind-power station, logistics, port, and construction field.
- Usd for lifting or loading. Or lifting heavy objects for working or keep in repair.
- It can be controlled by a handle on the ground or wire(no-wire) remote control.
- It can be suspended and fixed for use or matched with a monorail electric trolley

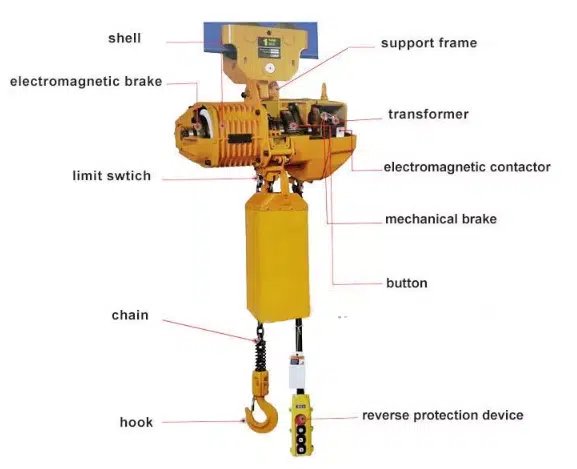

Manual Trolleys Electric Chain Hoists Main Components
Manual Trolleys Electric Chain Hoists are mainly composed of motor, transformer, housing, chain, and pendant control, similar to Motorized Trolley Electric Chain Hoists. The difference between the two types of electric chain hoists is the type of walking trolley used, that is, a motor-driven trolley and a hand-pulled electric trolley. Generally, Manual Trolleys and Electric Chain Hoists are widely used when horizontal movement is not required frequently or the load is not too heavy.
Datasheet
| Model | DHS | DHS | DHS | DHS | DHS |
| Lifting Capacity | 1ton | 2ton | 3ton | 5on | 10ton |
| Lift speed (5m/min) | 2.2 | 1.85 | 1.15 | 0.95 | 0.45 |
| Lift height (m) | 3-12 | 3-12 | 3-12 | 3-12 | 3-12 |
| Disk Motor Type | YHPE500—4 | YHPE750—4 | YHPE500—4 | YHPE750—4 | YHPE750—4 |
| Power | 500W | 750W | 750W | 750W | 750W |
| Rotating Speed | 1380r/min | 1380r/min | 1380r/min | 1380r/min | 1380r/min |
| Voltage | 380V | 380V | 380V | 380V | 380V |
| Dead Weight (Lift 3m) | 36kg | 45kg | 42kg | 57kg | 115kg |
| Dead Weight (Lift 6m) | 40Kg | 52kg | 50kg | 70kg | 142kg |
| Model | TCH | TCH | TCH | TCH | TCH |
| Lifting Capacity | 0.5ton | 1ton | 2ton | 3ton | 5ton |
| Lift Height (M) | 1-50 | 1-50 | 1-50 | 1-50 | 1-50 |
| Lift Speed (m/min) | 8.6 | 6.2 | 6.7 | 4.4 | 2.6 |
| Power (kW)50HZ/60HZ | 0.83/1 | 1.17/1.4 | 2.5/3 | 2.5/3 | 2.5/3 |
| Lift Chain Diameter (mm) | 7.1 | 7.1 | 11.2 | 11.2 | 11.2 |
| Lift Chain Quantity | 1 | 1 | 1 | 1 | 2 |
| Testing loading | 0.625ton | 1.25ton | 2.5ton | 3.75ton | 6.75ton |
| Size (mm) | 530 | 530 | 725 | 765 | 925 |
| Net weight (kg) | 53 | 53 | 100 | 102 | 130 |
| Model | DHP | DHP | DHP | DHP | DHP |
| Lifting Capacity | 1ton | 2ton | 3ton | 5ton | 10ton |
| Testing Loading | 1.25ton | 2.5ton | 3.75ton | 6.25ton | 12.5ton |
| lifting speed (Double Speed) | 0.26m/min 0.09m/min | 0.26m/min 0.09m/min | 0.26m/min 0.09m/min | 0.26m/min 0.09m/min | 0.26m/min 0.09m/min |
| Min distance between two hooks (mm) | 300 | 380 | 470 | 600 | 730 |
| Lifting Height (m) | 3 | 3 | 3 | 3 | 3 |
| Motor Power | 0.5kW | 0.8kW | 1.1kW | 1.5kW | 0.8kW |
| Power Voltage | 380V 50HZ | 380V 50HZ | 380V 50HZ | 380V 50HZ | 380V 50HZ |
| Dead Weight | 42kg | 50kg | 55kg | 62kg | 120kg |
| lift 1 more meter increase weight | 0.82kg | 1.7kg | 2.9kg | 4.42kg | 8.84kg |
| Model | DHT | DHT | DHT | DHT | DHT | DHT | DHT |
| Lift Capacity | 1ton | 1.5ton | 2ton | 3ton | 5ton | 10ton | 12ton |
| Motor Power | 0.3kW | 0.3kW | 0.3kW | 0.3kW | 0.75kW | 0.75kW | 0.75kW |
| Power Voltage | 380V 50HZ | 380V 50HZ | 380V 50HZ | 380V 50HZ | 380V 50HZ | 380V 50HZ | 380V 50HZ |
| Lift Speed (m/min) | 0.46 | 0.46 | 0.46 | 0.46 | 0.46 | 0.46 | 0.46 |
| Min. Distance between hooks | 270mm | 350mm | 380mm | 470mm | 600mm | 700mm | 1000mm |
| Lift Chain Quantity | 1 | 1 | 2 | 2 | 2 | 4 | 8 |
| Lift Height (m) | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 | 3 |
| Lift Chain Diameter (m) | 6 | 8 | 6 | 8 | 10 | 10 | 10 |
| Net Weight (kg) | 26 | 32 | 30 | 37 | 54 | 88 | 195 |
| Gross Weight (kg) | 28 | 34 | 32 | 42 | 66 | 102 | 235 |
| Packing Size (cm) | 33×34×34 | 33×34×34 | 33×34×34 | 33×34×34 | 43×36×43 | 50×50×43 | 72×72×85 |
| lift 1 more meter increase weight(kg) | 0.835 | 1.46 | 1.67 | 2.92 | 4.52 | 9.04 | 18.08 |
| Model | HSY | HSY | HSY | HSY | HSY | HSY | |
| Lift capacity | (ton) | 0.5 | 1 | 2 | 2.5 | 3 | 5 |
| Lift height | (M) | 3-9 | 3-9 | 3-9 | 3-9 | 3-9 | 3-9 |
| Lift speed | (M/Min) | 7.8 | 6.8 | 6.8 | 3.4 | 5.8 | 2.8 |
| Lifting motor | Power (kW) | 1.1 | 1.5 | 1.5 | 3 | 3 | 3 |
| Lifting motor | Rotation (r/min) | 1440 | 1440 | 1440 | 1440 | 1440 | 1440 |
| Lifting motor | phase | 3 | 3 | 3 | 3 | 3 | 3 |
| Lifting motor | voltage(V) | 380/220 | 380/220 | 380/220 | 380/220 | 380/220 | 380/220 |
| Lifting motor | Frequency (Hz) | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| H steel rail | mm | 75-125 | 75-125 | 75-125 | 82-153 | 82-153 | 100-178 |
Compared with of electric wire rope hoist
Electric Chain Hoists advantage: fixed lifting spot. Small size, convenient installation, the chain is not easy to snarl.
But relatively, the Electric chain hoists speed is slower, more suitable for precision operation. The point start error does not exceed 1 cm. Such as used in mold factories, wind power stations, car manufacturing, and synchronous ascension in stage performance.
