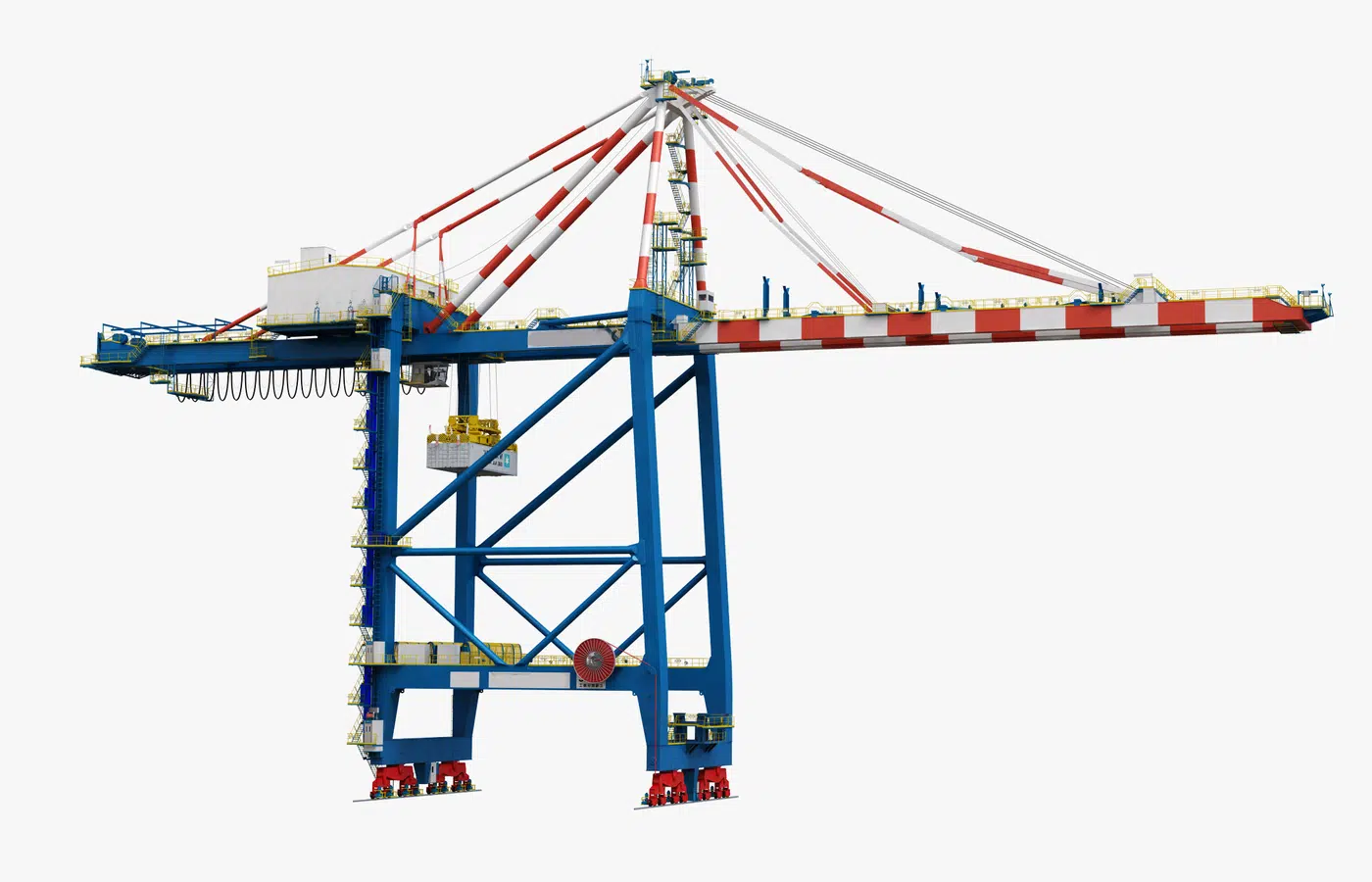

Ship-to-Shore Gantry Cranes
The ship-to-shore gantry crane is a large gantry crane used in port and terminal applications for loading, unloading, and transporting intermodal containers from ships. Therefore, it is also called a container handling gantry crane or simply sts gantry crane (sts cranes). It usually travels along two tracks spaced according to the sts crane size.
This container gantry crane is equipped with specialized container spreaders to handle container stacks instead of hooks. It can be widely used in medium to large container terminals to help increase production efficiency and reduce dwell time.
Ship-to-Shore Gantry Cranes
Ladle cranes are used to hoist liquid metal into mixing furnaces and steelmaking furnaces, and into continuous casting equipment or ingot molds. The main hoist is used for handling, and the auxiliary hoist performs auxiliary tasks such as tipping buckets.
| Type | STS |
| Lifting Capacity | 35 to 80 tons |
| Outreach distance | 25 to 70 meter |
| Backreach distance | 8 to 28 meter |
| Track gange | 14 to 42 meter |
| Gantry traveling Speed | 25 to 60 m/min |
Ship-to-Shore Gantry Cranes Serve
WeiHuaCrane can provide one-stop solutions for Ship-to-Shore Gantry Cranes, including design, production, installation, training, maintenance, repair, etc.
Also offers OEM/ODM service for Ship-to-Shore Gantry Cranes.
Products can be customized according to your individual requirements.
Please tell us your ideas or provide your design files and our R&D team will do the rest.
Ship-to-Shore Gantry Cranes Details
Ship-to-Shore Gantry Cranes Customized Options
Ship-to-Shore Gantry Cranes Components
There are mainly bridges, crane walking systems, hooks, hoists, trolleys, and electrical equipment.
bridge
It consists of the main beam, end beam, walking plate, column, test cage, cabin, and platform.
Main beam
Welded box-type double main beam;
The steel plate material is steel Fe37 or Fe52;
The main end beam is contacted by high-strength bolts;
The main beam can be an ordinary track beam or a non-track beam;
end beam
The end beams are welded by rectangular tubes or high-quality steel plates;
The main beam and the end beam are contacted by bolts;
Crane Travel System
The ground control adopts a soft start, with a small current, no axial swing, less motor, suitable for the frequent start, and good green energy-saving effect.
The cabin controls our ZDR series tapered winding rotor, three-phase asynchronous motor, or electromagnetic brake motor, with high mechanical strength, compact structure, and adjustable braking torque.
The motor starts smoothly and brakes safely.
The sky wheel, platform wheel, and brake wheel are processed by medium frequency induction quenching and power frequency quenching, and the hardness of the heat treatment is controlled by a Leeb hardness tester.
Hook – Use a hook attached to the crane to support the lifted load (can also be a grapple, electromagnet, etc.).
Hoists – A device that lifts and holds, raises or lowers a load using a wire rope or chain hoist or electric winch.
Trolley – consists of a motor, a reducer, and a trolley frame.
The trolley supports the hoist and moves horizontally along the crane bridge in order to position the hoist and hook before picking up or lowering the load.
electrical equipment
The safety contact wire has high conductivity, low pressure, and high set electric sliding speed.
The wire ropes in the electric box are neat and easy to maintain.
The power supply of the trolley is provided by the flat cable.
Smooth sliding and beautiful appearance.
protective device
The outdoor crane is equipped with a hoisting mechanism, an electrical control box, and a rainproof device.
Set the trolley travel interval device.
anti-collision device
Sound and light alarm device
operating device
Pendants, Remote Controls, Cabin Controls
Dedicated cabins for overhead cranes or capsule cabs with a wide field of vision and comfortable operation.
Steel Mill Cranes Type
Steel mill cranes are usually large heavy-duty cranes, usually overhead cranes.
The types of steel mill cranes are: ladle cranes, electromagnetic cranes, double trolley cranes, grab cranes and C-shaped coil handling cranes.
Specification
Please check the following specifications to choose the right Ship-to-Shore Gantry Cranes.
| Feature | Specification |
|---|---|
| Lifting capacity | 35 to 80 tons |
| Outreach distance | 25 to 70 meters; according to your needs |
| Backreach distance | 8 to 28 meters; according to your needs |
| Lift speed control | 25 to 60 m/min |
| Crane Control Options | Radio Controls, cab |
| Hoist Options | Winch Trolley |
| temperature | -20℃ ~ +40℃ Special function for wider temperature range |
| environment | Usually used in docks and ports |
Ship-to-Shore Gantry Cranes Features
Best Solutions For Manufacturing Company and Factory
Ship-to-Shore Gantry Cranes Manufacturer
WeiHuaCrane is a leading Ship-to-Shore Gantry Cranes manufacturer, supplier, company, and factory.
As one of the leading Ship-to-Shore Gantry Cranes manufacturers, WeiHuaCrane provides you with cost-effective overhead lifting equipment, which can be perfectly adapted to your working environment.
The first choice for factories and construction companies, is fast production, fast service, and can meet the needs of your material handling projects in a short time.
Customize the solution according to your usage environment.
We design, manufacture, install and maintain Ship-to-Shore Gantry Cranes.
What is a Ship-to-Shore Gantry Cranes?
The ship-to-shore gantry crane is a large gantry crane used in port and terminal applications for loading, unloading, and transporting intermodal containers from ships. Therefore, it is also called a container handling gantry crane or simply sts gantry crane (sts cranes). It usually travels along two tracks spaced according to the sts crane size.
Why choose our Ship-to-Shore Gantry Cranes？
Ship-to-Shore Gantry Cranes have always been our core product. We updated many items to make the structure safe and sound. Here are our advantages:
1. Quick installation, quick adjustment according to your existing production plan, minimizing equipment and production downtime.
2. Ergonomic
3. Cost-effectiveness
4. Lightweight
5. Sturdy and durable
6. Wide range of uses
7. Flexible
